Products for building

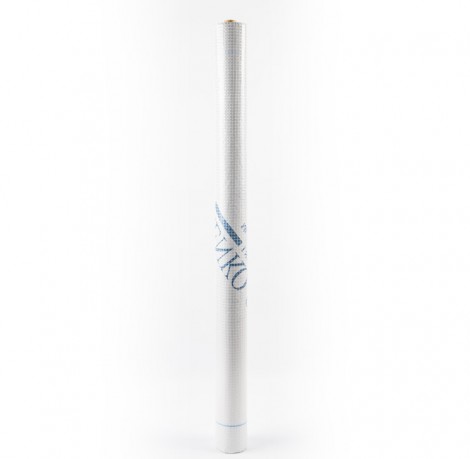

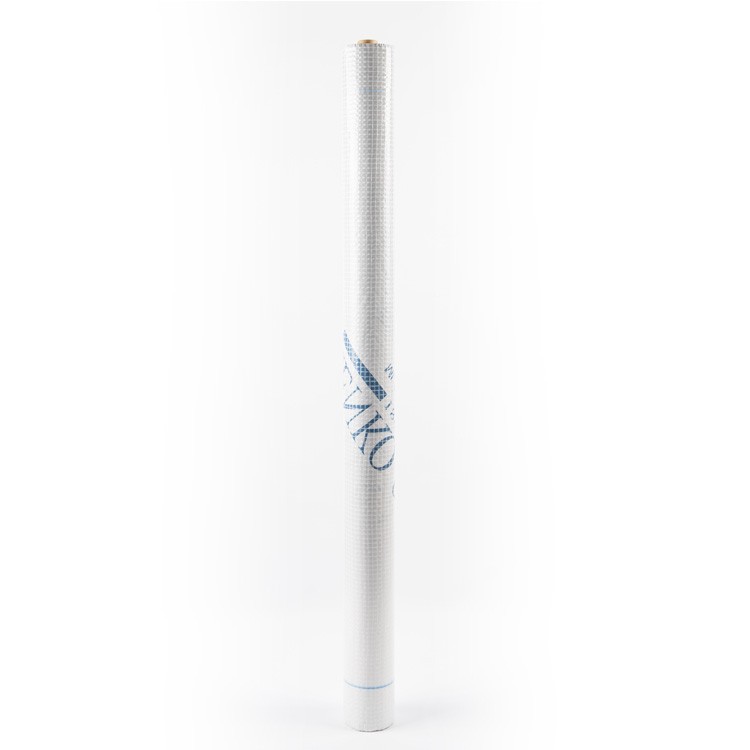

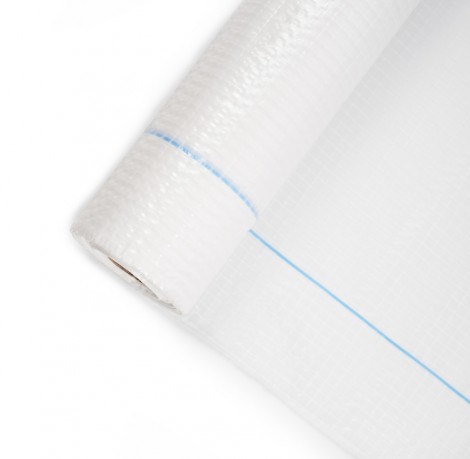

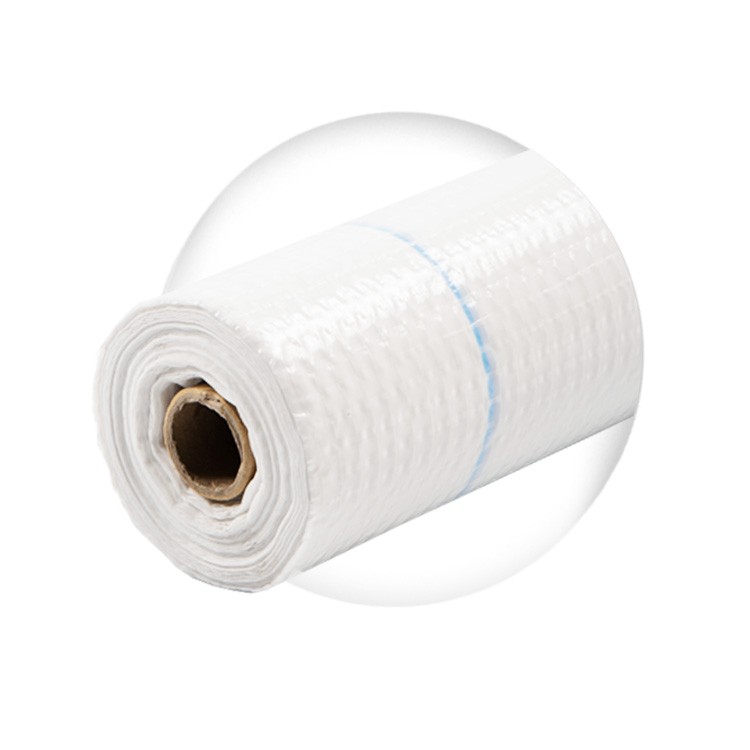

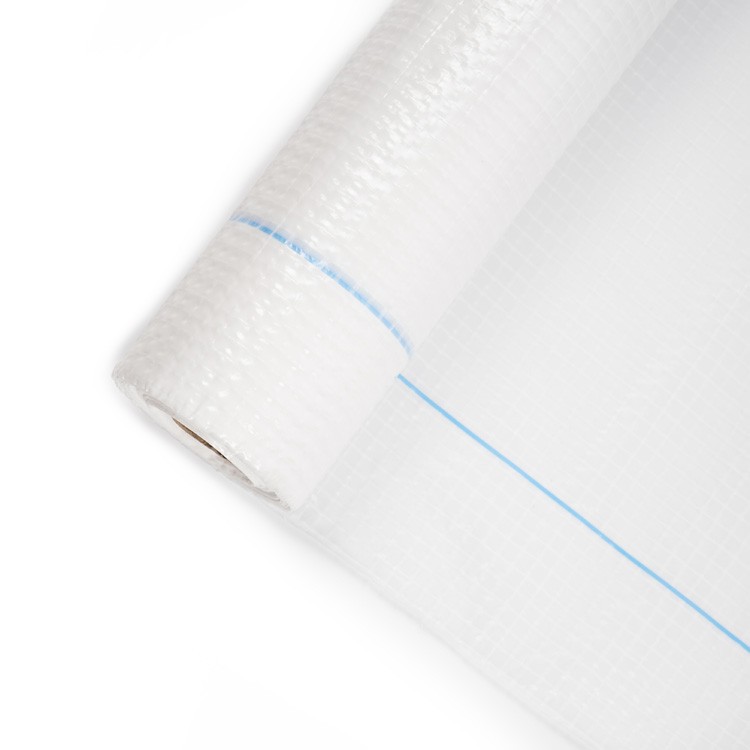

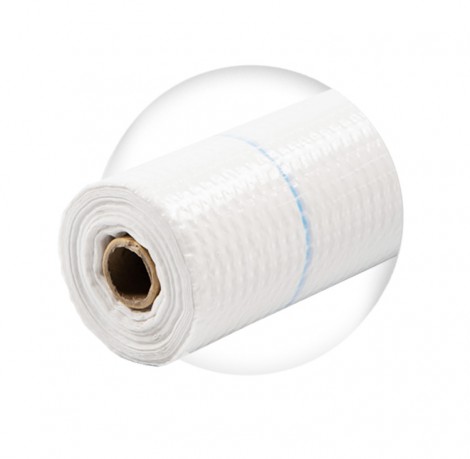

Vapour-insulation films ML 90 and ML 110 are three-layer films designed to protect against water vapour and moisture penetration in pitched and flat roofs, as well as vertical wall constructions. They are installed parallel to or along the rafters, directly under thermal insulation. These films feature intermediate strength properties compared to MLS 98 and regular vapour-insulation films.

ML vapour-insulation films meet the requirements of the European standard EN 13859-1:2010 and are marked with the CE symbol.

Commercial form
Commercial form
roll 75 m2
colour
colour
white
weight
weight
70 - 110 g/m2
width
width
1,5 m
PARAMETER ML 90 ML 110
Mass [g/m²] 90 (+5%/-25%) 110 (+5%/-25%)
Number of layers 3 3
Tensile strength [N/50mm] lengthwise: min. 120
crosswise: min. 50
lengthwise: min. 120
crosswise: min. 50
Elongation at break [%] lengthwise: min. 7
crosswise: min. 7
lengthwise: min. 7
crosswise: min. 7
Tear resistance [N] lengthwise: min. 60
crosswise: min. 60
lengthwise: min. 60
crosswise: min. 60
Diffusion resistance [m²s Pa/kg] 48.6 × 109 48.6 × 109
Water tightness positive result at 2 kPa positive result at 2 kPa
Durability after artificial ageing positive result positive result
Fire resistance class F E
Roll dimensions [m] 1.5 × 50 1.5 × 50

see the declaration of performance for ML 90▶

see the declaration of performance for ML 110▶
